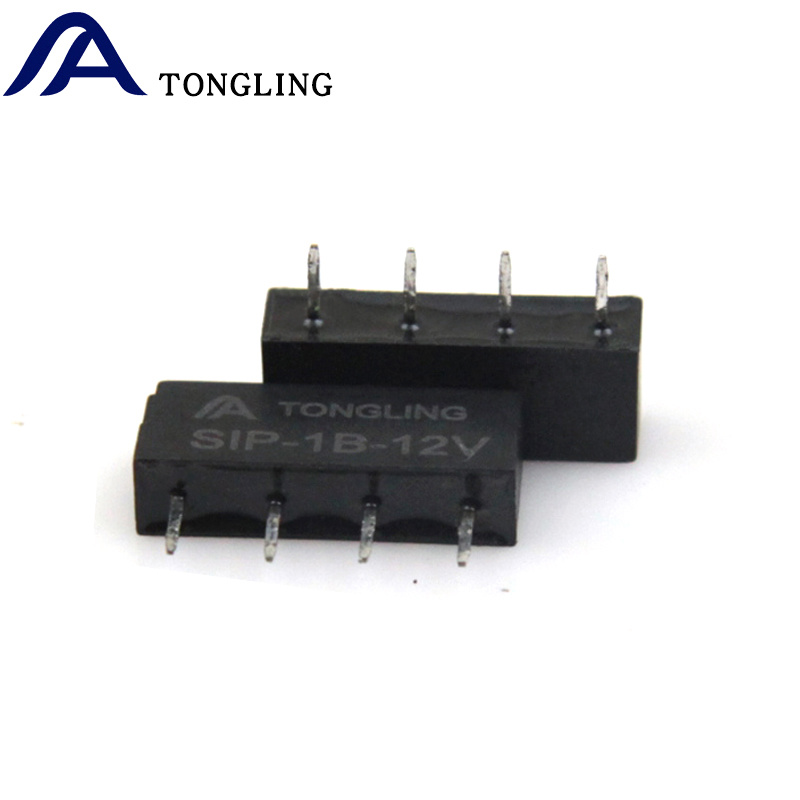

SIP-1B-12V干簧继电器
PCB 干簧继电器 SIP
- Small size,light weight,low coil power consumption
体积小，重量轻，线圈功耗低 .
- Strong anti-shock and anti-vibration,high reliablility,long life.
抗冲击及抗震性强,可靠性高,寿命长
- PC board mounting.可直接焊接在印刷线路板中
- High sensivity.高灵敏度
- Small size 体积小巧: 19.8X5.08X7.62mm
ORDERING CODE 定购代码
|
SIP — 1A —12V 1 2 3 |
|
1,Part number 型号 : SIP 2,Contact arrangement触点形式 :A:1A;B:1B 3, Coil rated voltage线圈额定电压(V):DC:3,5,12,24 |
CONTACT DATA 触点参数
|
Contact Arrangement 触点形式 |
1A(1H)(SPST NO); 1B(SPST NC) |
|
|
Contact Material 触点材料 |
Ru/Rh |
|
|
Conatct Rating(Resistive) 触点负载(阻性) |
0.1A/125VAC;0.5A/24VDC |
|
|
Max.Switching Power 最大切换功率 |
10W(DC)/10VA(AC) |
|
|
Max.Switching Voltage 最大切换电压 |
110VDC |
|
|
Max.Switching Current 最大切换电流 |
0.5A |
|
|
Contact Resistance or Voltage Drop 触点阻性或压降 |
≤150mΩ |
|
|
Operation Life 寿命 |
电气 Electrical |
107 |
|
机械 Mechanical |
108 |
|
COIL DATA 线圈参数 (at 20℃ )
|
线圈电压 Coil voltage (VDC) |
线圈电阻Coil Resistance Ω ±10% |
吸合电压 VDC(最大) Pick up Voltage VDC(Max) (额定电压的 75%) (75% of rated voltage) |
释放电压 VDC Release voltage VDC(Min) (额定电压的 5%) (5% of rated voltage) |
线圈功耗Coil power consumption (W) |
动作时间Operate Time (mS) |
释放时间Release Time (mS) |
|
|
额定 Rated |
最大 Max |
||||||
|
3 |
3.90 |
250 |
2.25 |
0.3 |
0.036 |
≤0.5 |
≤0.2 |
|
5 |
6.50 |
500 |
3.75 |
0.5 |
0.050 |
||
|
12 |
15.6 |
1000 |
9.00 |
1.2 |
0.144 |
||
|
24 |
31.2 |
2000 |
18.0 |
2.4 |
0.288 |
||
注意:1,使用的线圈电压低于线圈额定电压时将会损害继电器的工作.
2,吸合,释放电压仅供检测用,不是设计的使用指标.
Caution:1,The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2,Pick up and release voltage are for test purposes only and are not be used as design criteria.
Operation condition技术特性
|
Insulation Resistance 绝缘电阻 |
最 少 100MΩ min(at 500VDC) |
|
|
Dielectric Strength 介质耐压 Between Contacts 断开触点间 Between Contacts and Coil 触点与线圈间 |
50Hz 200VAC 50Hz 1400VAC |
|
|
Shock Resistance 耐冲击 |
动作极限 Functional |
20G |
|
破坏极限 Destruction |
100G |
|
|
Vibration Resistance抗振性 |
10~55Hz 双振幅 Double amplitude 1.5mm |
|
|
Terminals Strength引出端强度 |
10N |
|
|
Solderability可焊性 |
235±2℃ 3±0.5s℃ |
|
|
Ambient Temperature 工作温度 |
-40~85℃ |
|
|
Storage Temperature存储环境 |
-40~125℃ |
|
|
Mass 质(重)量 |
1.6g |
|
